I’m liking that grip… and the utilitarian handguard
2 Likes
You sure it’s just the front end on that ACR you messed with for a laugh
joking…
Love the angled grips. They suit me and look good!
I epoxied a 14mm ccw to 19mm tube adaptor to my ACR metal barrel. Leave that to set while I play with the gearbox and get it fitted.
Was it only the ACR-R available in 7.62?
Kinda wished I had kept my couple of old ones just for something different to hang on the wall with the other different models.
Available in 7.62 x 39
Cheers, yeah they definitely have a better look than the run of the mill 5.56 that is so commonplace.
1 Like
I prefer the 7.62 version.
Got the brushless 25k t238 fitted, filed out the gearbox screw holes in the motor area and the wiring holes… and shimmed 12:1 gears…
Now to rewire it to the front… tomorrow

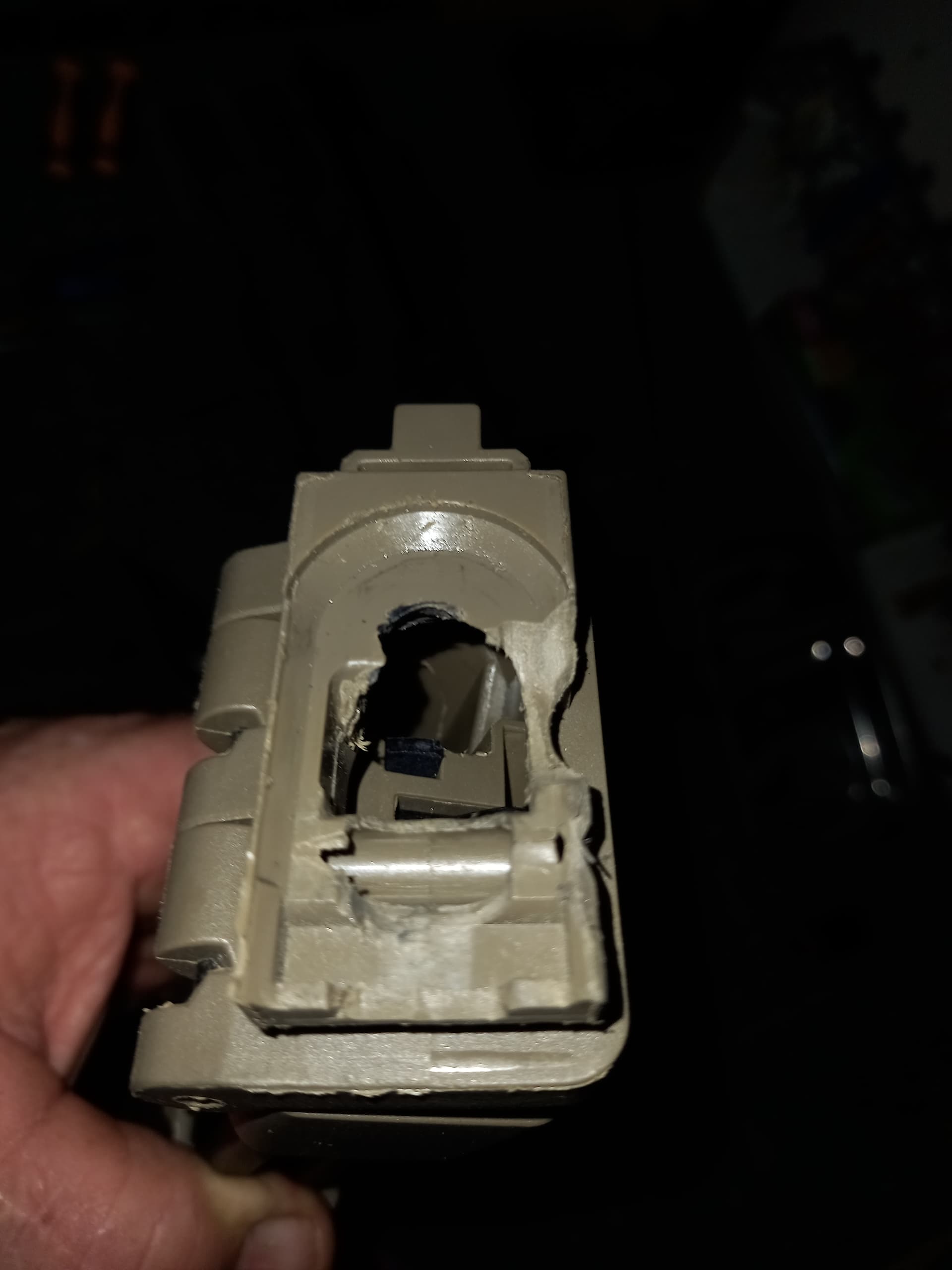

You need to hog out some of the nylon around the front handguard pin so you don’t pinch the wires. Also found that separating and gluing the wiring to the edges of the receiver helped to stop the wiring getting caught under the t-piece.
(gearbox isn’t screwed together in the pic
1 Like
I have front wired a few m4s before. Easier in the gearbox, harder in the receiver!
I enjoy making wiring, but won’t lie I am prepared to use plenty of “working words” for this one!
Should be interesting!
Good read👍
Still have my old J10 packed away, was one of the most reliable and distance accurate blasters I built👍
3 Likes
Ah, good to hear from you, matey.
Yeah, the ACRs slipped under the radar for me… I’m a bit late to the party with them. Can see the appeal though… get them sorted a bit and they’re pretty damn good.
They had a bad accuracy rep but fix the IB and OB and they’re as accurate as anything out there. Funny how issues that were hard to work around back then are a cakewalk now. Guess it proves we’re learning all the time.
I remember your ACR from the old forum, BMD.
4 Likes
Looks like @RokSolid scored himself some credit from iHobby. They have uploaded his ACR rebuild video on the Tube. Nice going
2 Likes
They work very quickly! I am as surprised as you lot!
And in true form, I’ll have a blaster coming to review and video. One I have been eyeing off for a long time.
There will be a review… then it will get the full Gel Ball Nobody treatment on my channel… don’t worry… I am honest, and have only the interest of free sharing information for the community.
Speaking of… wiring is done… tomorrow I’ll get the box together and shoe horn it in, the lower and gearbox will be done.
Then it’s on to fit the front wiring in the upper receiver and metal outer barrel… slowly coming together… but I need to clear my bench for later next week
4 Likes
Well done mate, good to see you getting some recognition and looking forward to seeing how you go with the Review Video.
1 Like
Thanks @DocBob it’s been time consuming but fun, anything to cheapen my addiction I guess!

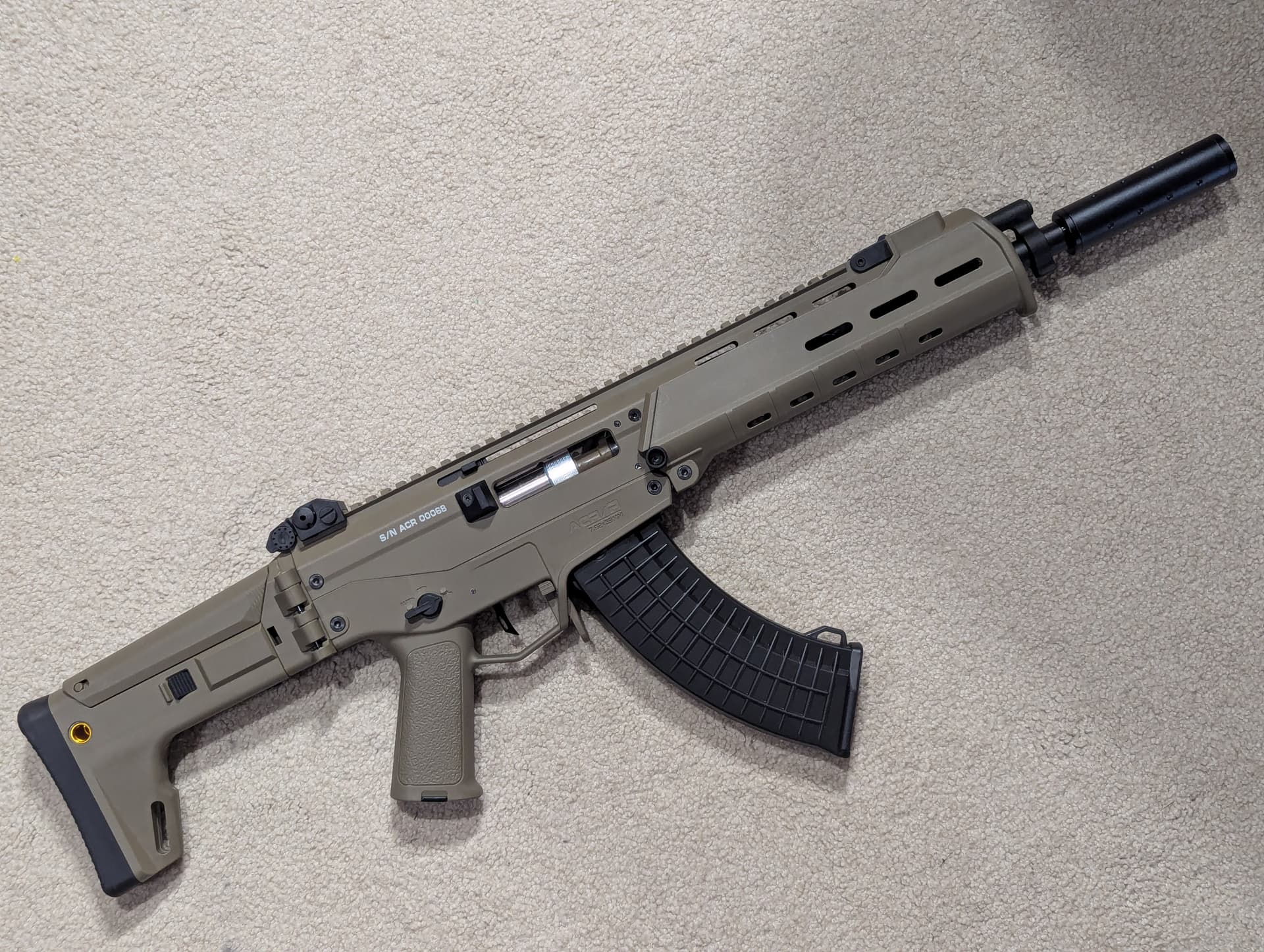

On the ACR front, gearbox is in, wiring routed to front, metal barrel is in… test fired, works… Sounds like around 25rps which is spot on what I like for outdoor hammerings…
Still yet to decide on the final inner barrel length… 335 or 350mm… might depend on the hopup I end up deciding on and whether it’s a suppressor or flash hider…
Also with front wiring… it’s too easy to swap springs as the upper and stock can come away just with a few pins punched out… little bit of ease of use… so haven’t decided on the final spring either.
Enough for today, it’s together and off the bench for now, as much as I’d like to give it a good test. Should really let the loctite and glue set properly!
1 Like
Ease of piston spring changes is a real side benefit of forward wiring these ACRs that I wouldn’t have thought of, but defnitely a bonus.
Have fun trying to change the spring with just removing the upper and stock. There’s still some meat at the back of the receiver
Might be an ACR/R with an MK box thing… I have already tried and it works well. Once the upper is off, rear pin out and stock slides out no worries.
Where the real caveat is… the upper is attached to the wires, now requires removing 2 pins and 4 screws to remove the entire barrel assembly to free the wires!
I may revisit that setup, but it became a just want to test it, then it will get a full teardown and inspection anyway.
My ACR DMR had the forward Silver Wiring Kit fitted with a Deans plug at the joint between the MK Gearbox and the upper receiver to allow for quick and easy disassembly of the split reciever to detach from the battery wires to the gearbox.
Very similar to what I did with my Camo UMP45 with the forward wiring to the PEQ box mounted brick battery for easy disassembly.
Hopefully I’m understanding your comments correctly and offering an easy solution?
